Turbo T60-2 Centrifuges

The Turbo T60-2 is a versatile highly automated self-cleaning centrifuge that clarifies particulate matter entrained in the fluid down to the 1 – 10-micron range. The centrifuge has a process rate of up to 66 GPM with a solids removal rate of up to 530 pounds/shift of dry solids.

The T60-2 Centrifuge includes proprietary nozzles that allow solids dewatering at high speeds. The custom engineered scraper blade mechanism will be matched to the type of solids removed whether the solids compact hard like glass or whether they form a sticky paste like certain paint solids. A geared scraper drive for solids discharge ensures long term reliability. The discharged solids are dry due to a unique bowl design and high rotational speeds.

The Turbo T60-2 Centrifuge is PLC controlled to sequence the process and allow unattended operation with a digital interface and sensors for monitoring bearing wear, centrifuge speed and sludge discharge. The T60-2 can be supplied as a standalone unit or combined with additional process tankage and equipment in one of our Custom Turbo Systems.

Features and Benefits:

  • High Bowl Speed for Maximum Separation Efficiency
  • High Speed Dewatering Reduces Solids Disposal Volumes
  • Uses No Consumable Media
  • Process flow rates of up to 66 GPM
  • Solids Capacity providing up to ~66 lbs. of solids discharged per hour
  • High Separation Efficiency with up to ~1,300 g’s of force
  • Capability to remove particles down to the 1-micron range.
  • Stainless Steel rotors are available upon request.

T60-2 Centrifuge Applications

  • Metal working coolants and oils
  • Optical glass grinding
  • Glass Fabrication
  • Ceramics and composite grinding
  • Paint booth processes
  • Phosphate bath and rinsing solutions
  • Parts washer applications
  • Gallium arsenide
  • Wire Drawing
  • Laundry Processes
  • Vibratory deburring
  • Silica Wafer cutting and grinding
  • Stone cutting and grinding
  • Biofuel and Oil Production
  • Sludge processing and dewatering
  • Wastewater clarification
  • Applications

    • Metal working coolants and oils
    • Optical glass grinding
    • Glass Fabrication
    • Ceramics and composite grinding
    • Paint booth processes
    • Phosphate bath and rinsing solutions
    • Parts washer applications
    • Gallium arsenide
    • Wire Drawing
    • Laundry Processes
    • Vibratory deburring
    • Silica Wafer cutting and grinding
    • Stone cutting and grinding
    • Biofuel and Oil Production
    • Sludge processing and dewatering
    • Wastewater clarification
  • Specifications

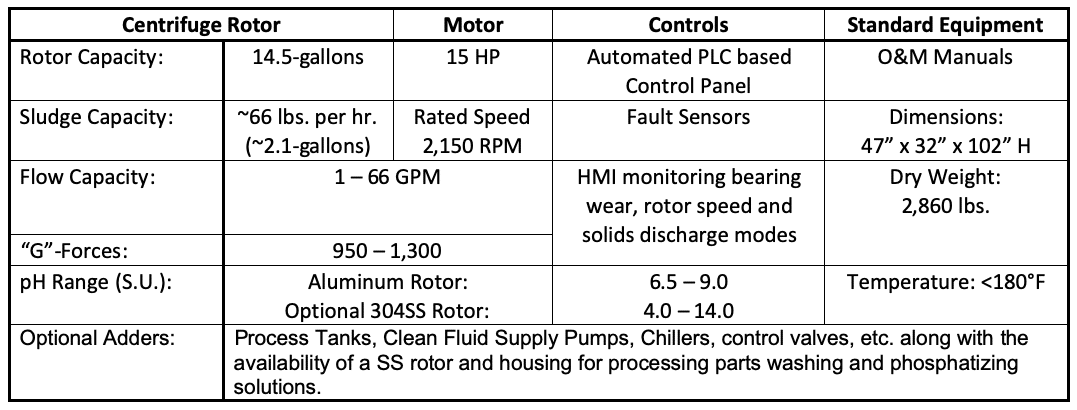

    Specifications
